Aqua Control® Nozzle Extension Kit - Fusion Series

The Fusion Nozzle Extension package by Aqua Control® offers nine distinctive spray patterns for your Fusion series fountain. Elevate your pond with a striking, custom display that turns your fountain into a true centrepiece.

Description

Aqua Control® nozzle extension kits are now available for all Fusion series fountains. With a revolutionary nozzle system capable of hundreds of pattern combinations, Fusion creates a one-of-a-kind water display.

Nozzle extension kit only. To purchase a fountain, please click here.

The Fusion series can be equipped with an advanced twisting module, transforming select patterns into captivating, twisting water displays. For more information, visit the fountain product page above.

With the extension kit, you can enjoy the following spray patterns:

			Jet Diameter (Height × Width)	Jet Diameter (Height × Width)	Jet Diameter (Height × Width)	Jet Diameter (Height × Width)
Nozzle Name	With Twisting Module	Standard	0.5 HP	1 HP	1.5 HP	2 HP

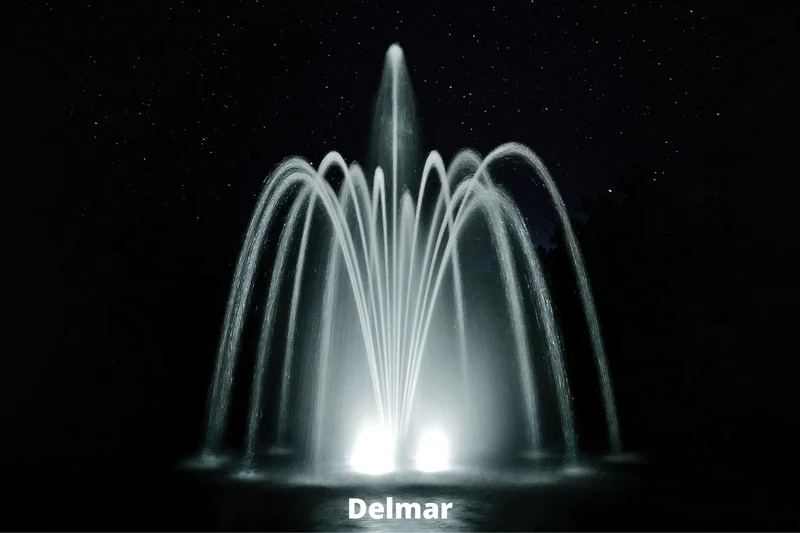

Delmar	Does not twist		8.5' x 10'	11' x 14'	15' x 16'	18' x 22'

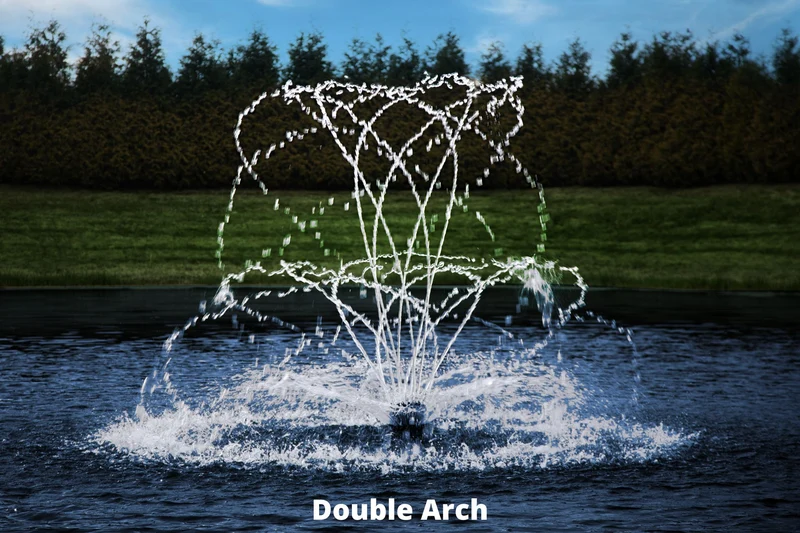

Double Arch			8' x 28'	10.5' x 32'	15' x 46'	16.5' x 54'

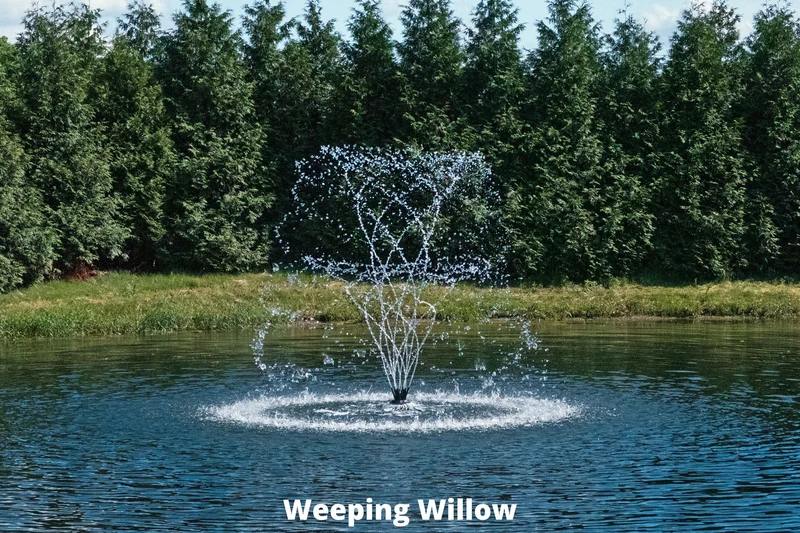

Weeping Willow			9' x 18'	11' x 26'	15' x 30'	18' x 40'

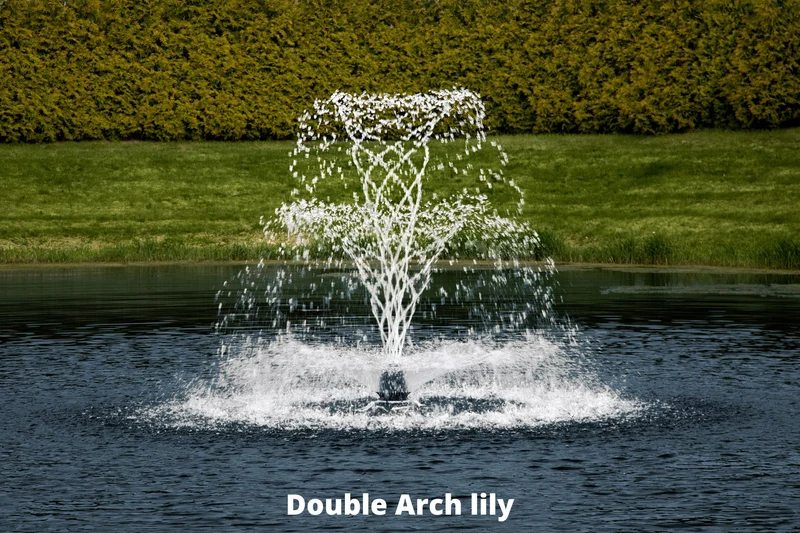

Double Arch Lily			5' x 12'	7' x 20'	9.5' x 28'	11' x 32'

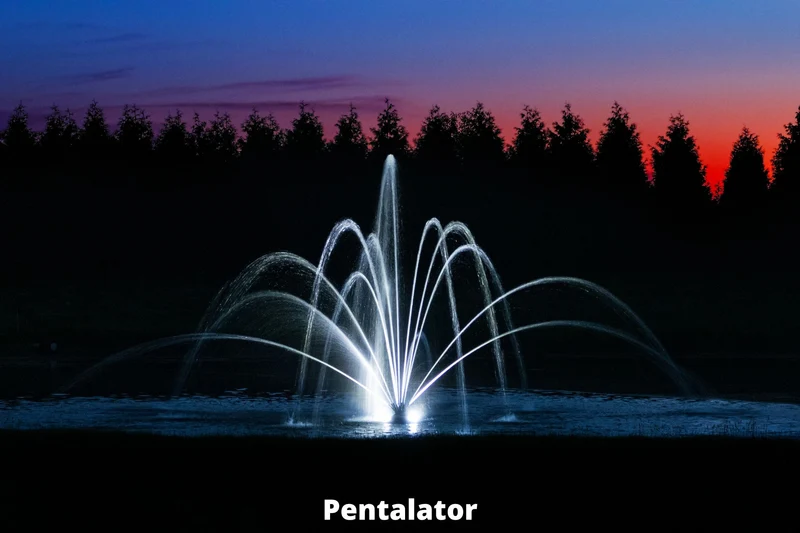

Pentalator	Does not twist		9' x 26'	11' x 36'	15' x 40'	18' x 48'

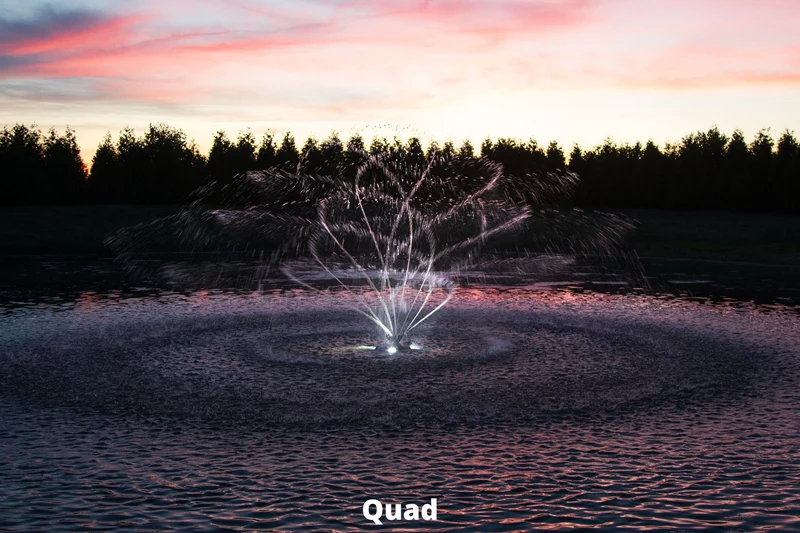

Quad			9' x 28'	11' x 36'	15' x 48'	18' x 58'

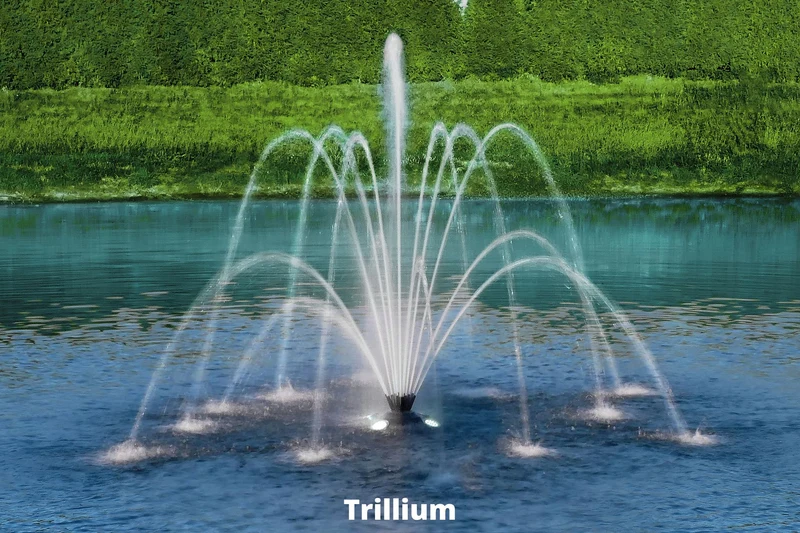

Trillium	Does not twist		9' x 12'	11' x 18'	15' x 28'	18' x 30'

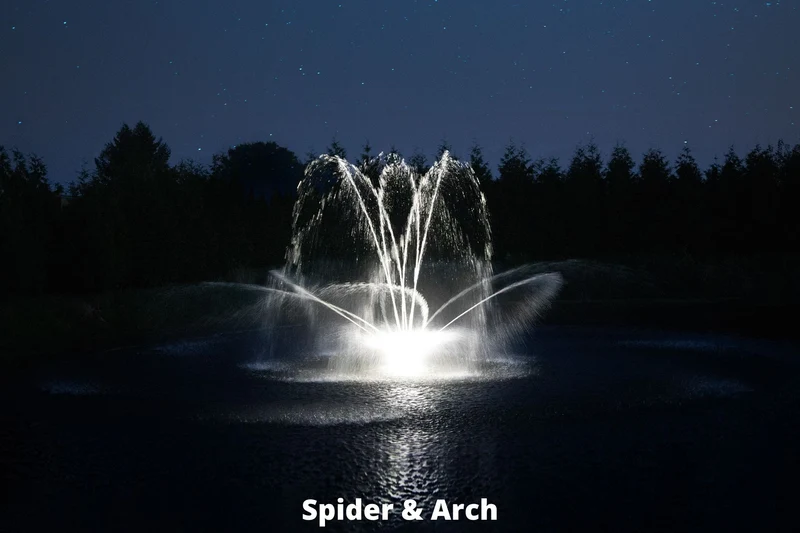

Spider & Arch			9' x 28'	11' x 34'	15' x 48'	18' x 58'

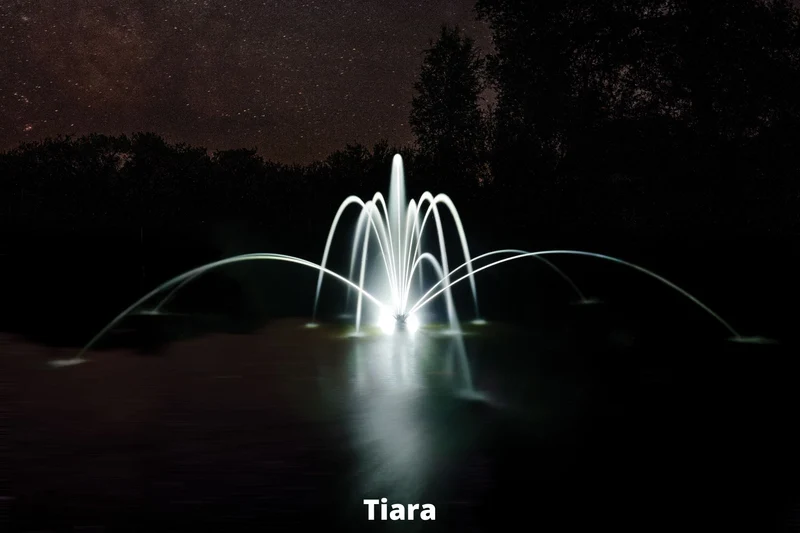

Tiara	Does not twist		9' x 26'	11' x 36'	15' x 40'	18' x 48'

Technical Specifications

The chart below illustrates the dimensions of each spray pattern based on the horsepower (HP) of your Aqua Control® Fusion Series fountain. Measurements are shown in feet (ft) as height and diameter (width).

Nozzle Name	HP	Height (ft)	Diameter (ft)
Delmar	0.5	8.5' (2.5 m)	10' (3 m)
	1	11' (3.4 m)	14' (4.3 m)
	1.5	15' (4.6 m)	16' (4.9 m)
	2	18' (5.5 m)	22' (6.7 m)
Double Arch	0.5	8' (2.4 m)	28' (8.5 m)
	1	10.5' (3 m)	32' (9.8 m)
	1.5	15' (4.6 m)	46' (14 m)
	2	16.5' (4.9 m)	54' (16.5 m)
Weeping Willow	0.5	9' (2.7 m)	18' (5.5 m)
	1	11' (3.4 m)	26' (7.9 m)
	1.5	15' (4.6 m)	30' (9.1 m)
	2	18' (5.5 m)	40' (12.2 m)
Double Arch Lily	0.5	5' (1.5 m)	12' (3.7 m)
	1	7' (2.1 m)	20' (6.1 m)
	1.5	9.5' (2.7 m)	28' (8.5 m)
	2	11' (3.4 m)	32' (9.8 m)
Pentalator	0.5	9' (2.7 m)	26' (7.9 m)
	1	11' (3.4 m)	36' (11 m)
	1.5	15' (4.6 m)	40' (12.2 m)
	2	18' (5.5 m)	48' (14.6 m)
Quad	0.5	9' (2.7 m)	28' (8.5 m)
	1	11' (3.4 m)	36' (11 m)
	1.5	15' (4.6 m)	48' (14.6 m)
	2	18' (5.5 m)	58' (17.7 m)
Trillium	0.5	9 (2.7 m)	12' (3.7 m)
	1	11' (3.4 m)	18' (5.5 m)
	1.5	15' (4.6 m)	30' (9.1 m)
	2	18 (5.5 m)	28' (8.5 m)
Spider & Arch	0.5	9' (2.7 m)	28' (8.5 m)
	1	11' (3.4 m)	34' (10.4 m)
	1.5	15' (4.6 m)	48' (14.6 m)
	2	18' (5.5 m)	58' (17.7 m)
Tiara	0.5	9' (2.7 m)	26' (7.9 m)
	1	11' (3.4 m)	44' (13.4 m)
	1.5	15' (4.6 m)	48' (14.6 m)
	2	18' (5.5 m)	62' (18.9 m)

Corrosion resistance: In salt water or other corrosive environments. All external parts are stainless steel.

Highly dependable: Units are designed to operate continuously with minimal maintenance, even in shallow water.

Extension Assembly

The Fusion Series extended nozzle package expands your creative possibilities, allowing you to generate additional spray patterns using the modular components provided. This kit is designed to complement the standard nozzle set included with your Fusion Series fountain.

The Extension Kit for Fusion Series fountains includes:

Quantity	Part Name
12	0.6 Nozzle Tip
12	25° Elbow
12	Flow Control
Additional	Screws

Follow the Assembly Instructions Below for Each Nozzle in the Extension Kit:

Delmar

Double Arch

Double Arch Lily

Pentalator

Quad

Spider Arch

Tiara

Trillium

Weeping Willow
