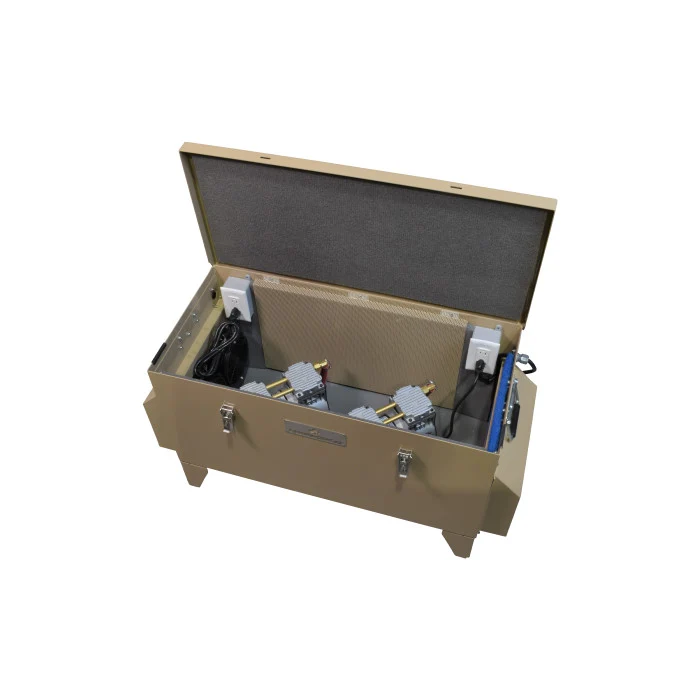

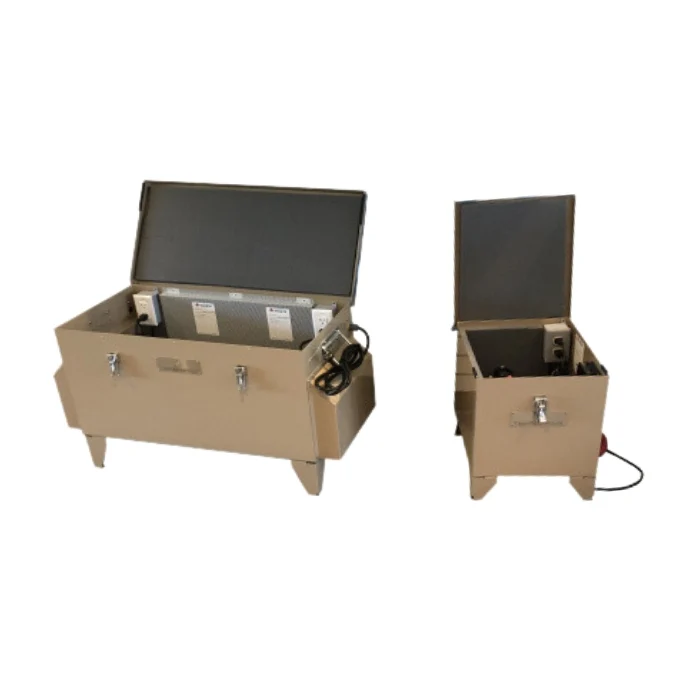

Cabinets for Compressors

At Canadian Pond.ca Products we offer a complete range of cabinets for compressor protection. Our cabinets are designed to extend the life of the compressor and to protect them from the weather.

Benefits

Compressor cabinets provide good ventilation for compressors and are insulated to help reduce noise. In addition, your cabinet protects the compressor (s) from the elements and vandalism. Cabinets are an additional investment that is well worth it for any aeration, deicing or bubble curtain systems.

Client testimonial: " I installed my new system (with cabinet) a short distance away from the cottage. The new system runs without any residual noise or vibration being heard in the cottage-I’m so happy!! " -Ontario cottage owner

Technical Specifications

As specialists in aeration systems, we have seen a variety of installation related issues mostly related to pourly designed homemade cabinets. Proper ventillation and an integrated design allow for optimal TeichAire™ compressor perfomance for years to come!

Don't risk burning your compressor, trust a Canadian Pond.ca Products cab!

Cabinet specifications

Cabinet	CAB1	CAB2
Compressor(s)	1	2
Compressor size	¼, ½, ¾ HP	¼, ½, ¾ HP
Dimensions	14.375" (35.56 cm) x 18.40" (20.32 cm) x  18.375" (45.72 cm) H.	40.5" (103 cm) x 16.25" (41 cm) x 22" (56 cm ) H.
Sound Insulation	10 dB	10 dB
Fabrication	Steel with powder coated paint	Steel with powder coated paint
Ventilation (fan)	162 CFM  6" (15 cm)	162 CFM  6" (15 cm)
Warranty	1 year	1 year
Heater unit	Optional	Optional
Voltage	115V, 230V	115V, 230V
Weight	58 lb (26 kg)	92 lb (42 kg)
Power cord	6' (2.7 m)	6' (2.7 m)

If you are looking for a base mount for your compressor, please click here
