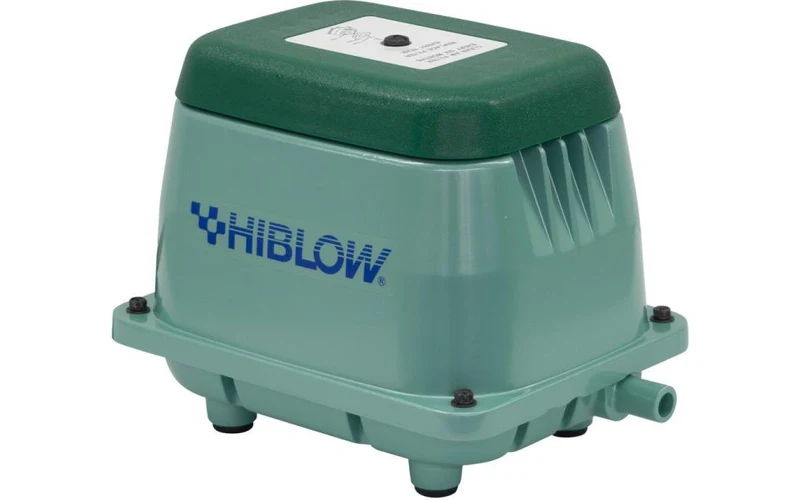

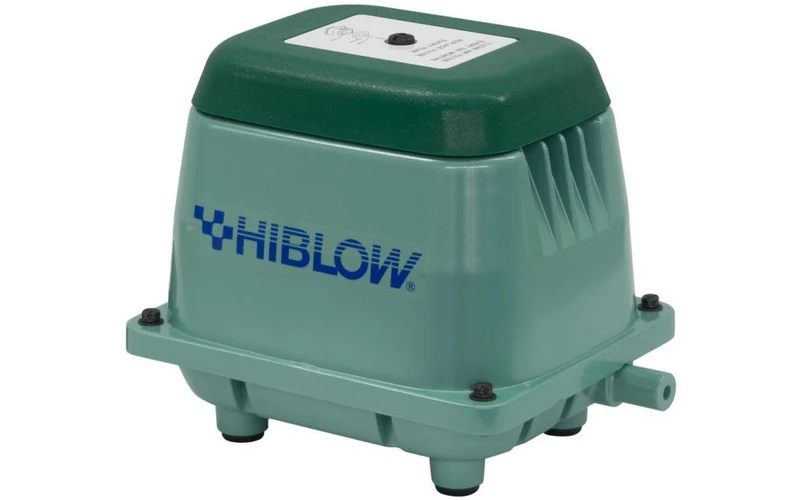

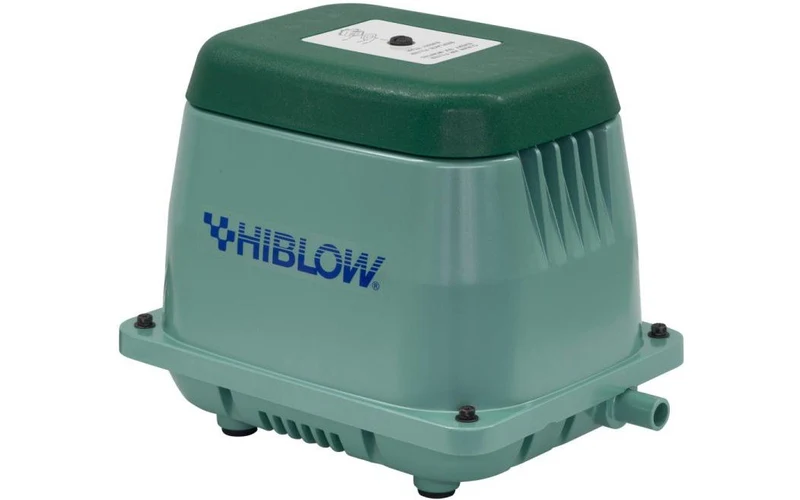

Electromagnetic Diaphragm Compressors (Hiblow)

Hiblow compressors are perfect for small ponds (8 ft deep max), small basins and septic tanks.

Benefits

This page is for Hiblow Replacement Compressors.  If you're looking for a complete aeration system using a Hiblow compressor, click here to purchase our Small Aeration Systems (S.A.S.)

Electromagnetic diaphragm pumps are often referred to as linear air pumps. Most people would recognize them as aquarium air pumps; they look like a toaster. They use an electromagnetic system that oscillates the diaphragm and creates a steady flow of air. They are simple but very durable, and this is the quietest way to create air pressure. But silence brings limitations, and they provide no more than 6-7 psi or 0.41-0.48 bar pressure for larger models, and most operate at a maximum of 3-4 psi or 0.21-0.28 bar.

With the right type of air diffuser, they are ideal for shallow water gardens. We have sold many diaphragm pumps over the years, and the most common comment that comes up is that people are drawn to their quiet operation. However, they can sometimes be wrong about the true depth of their water basins. Picking the wrong compressor can lead to its diaphragms wearing out faster and causing it to break constantly. Trust our salespeople to provide you with the right system.

Canadian Pond.ca Products offers you a wide choice of compressors for aeration. It is possible to make energy-efficient choices while avoiding compromises.

Technical Specifications

Online sales are typically for people with basic knowledge of these compressors. Contact us if you have any doubts about which model to choose!

HP Series

The Hiblow HP Compressor Series is the company's flagship series. Over 12 million compressors sold worldwide make it a popular solution for users. They are durable and recognized in the market as a benchmark. Our service department is now certified to repair these units and can help you keep your Hiblow compressor for years to come.

We suggest using a Hiblow HP series compressor for ponds 6-8 feet deep, but not deeper.

All Hiblow compressors have a 6-foot power cord with a plug included.

Model HP20:

Max flow: 32LPM, 1.1 CFM
Energy consumption: 17 Watts
Noise level: 32 dBA
Maximum continuous pressure: 15 kPa / 2.1 PSI
1-year manufacturer's warranty

Model HP40:

Max flow: 40LPM, 1.4 CFM
Energy consumption: 38 Watts
Noise level: 32 dBA
Maximum continuous pressure: 20 kPa / 2.9 PSI
1-year manufacturer's warranty

Model HP60:

Max flow: 60LPM, 2.1 CFM
Energy consumption: 51 Watts
Noise level: 35 dBA
Maximum continuous pressure: 25 kPa / 3.6 PSI
1-year manufacturer's warranty

Model HP80:

Max flow: 80LPM, 2.8 CFM
Energy consumption: 71 Watts
Noise level: 36 dBA
Maximum continuous pressure: 25 kPa / 3.6 PSI
1-year manufacturer's warranty

Model HP100:

Max flow: 110LPM, 3.8 CFM
Energy consumption: 100 Watts
Noise level: 38 dBA
Maximum continuous pressure: 25 kPa / 3.6 PSI
1-year manufacturer's warranty

Model HP100LL:

Max flow: 100LPM, 3.5 CFM
Energy consumption: 75 Watts
Noise level: 42 dBA
Maximum continuous pressure: 25 kPa / 3.6 PSI
1-year manufacturer's warranty

The LL design includes longer-lasting diaphragms for longer life of the unit.
For this model, please contact us.

Model: HP120LL:

Max flow: 120 LPM, 5.2 CFM
Energy consumption: 100 Watts
Noise level: 40 dBA
Maximum continuous pressure: 25 kPa / 3.6 PSI
1-year manufacturer's warranty

The LL design includes longer-lasting diaphragms for longer life of the unit.

Model HP150:

Max flow: 150 LPM, 5.3 CFM
Energy consumption: 155 Watts
Noise level: 45 dBA
Maximum continuous pressure: 30 kPa / 4.3 PSI
1-year manufacturer's warranty

Model HP200:

Max flow: 200 LPM, 7 CFM
Energy consumption: 250 Watts
Noise level: 46 dBA
Maximum continuous pressure: 30 kPa / 4.3 PSI
1-year manufacturer's warranty

Installation/Related Products

Maintenance service is available through our after-sales department. Contact us for a quote.

Preparing Your Compressor for Winter (PDF)
Aeration System Installation Instructions (PDF)

We offer a repair kit including an air filter available to purchase. Shop Hiblow Repair Kit here.

Electromagnetic diaphragm compressors use air filters made out of fibres that require cleaning every 6 to 12 months, or more frequently if your compressor is in a dusty environment. The filter can be cleaned with soap and water and reused several times.

Follow the steps in this video to learn how to change the filter:
