Mounting Bases for Compressors

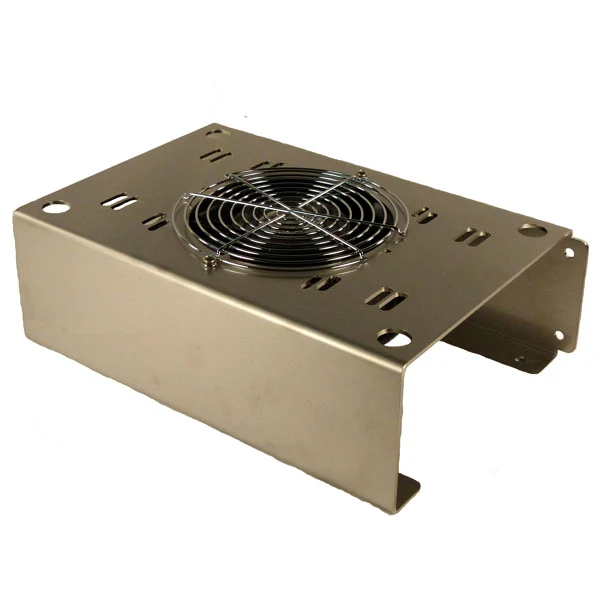

Designed for TeichAire™ compressors, this stainless steel mounting base helps dissipate vibrations and ensure airflow around the compressor. Available for 1/4 HP, 1/2 HP and 3/4 HP compressors.

Benefits

We recommend attaching TeichAire™ compressors to a mounting base to reduce vibrations, to increase product lifetime and to reduce wear on the internal mechanisms. The heavy-duty stainless steel mounting bases we offer are designed to allow you to securely place the motor in a variety of locations.

The base can be used to mount the compressor in a shed or garage; it can also be mounted on a wall or a shelving unit. The mounting base has an integrated fan for optimal performance. Each mounting base includes rubber feet for vibration reduction and all necessary hardware.

*Base only, compressor not included

Technical Specifications

These mounting bases are made of stainless steel for long-term use.

Specifications of Mounting Bases

• Base Dimension:
  Length: 13"    Width: 8"   Height: 4"
• Base Fan:
  00-BASE-CSP: 4" 115V, 60Hz, 140 CFM
  00-BASE-CDP: 6", 115V, 60Hz, 290 CFM

Mounting Base	00-BASE-CSP	00-BASE-CDP	00-BASE-CDP
Compressor	¼ HP	½, HP	¾ HP
Height with compressor	Height: 13''	Height: 12''	Height: 17''
Fan Diameter	4''	6''	6''

If you're looking for a cabinet for your compressor: Click here
