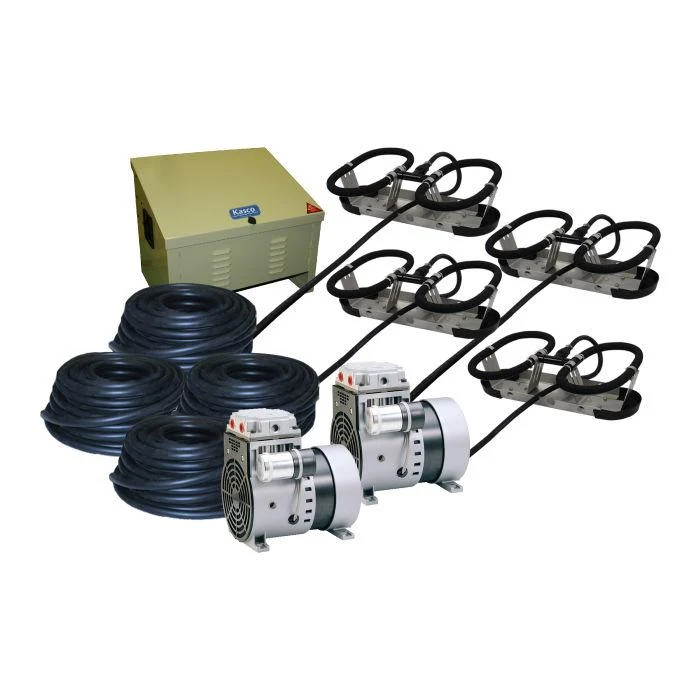

RobustAire™ - Kasco Marine Aeration System

Kasco Marine has designed the RobustAire™ aeration systems to be durable, affordable and easy to install. Canadian Pond.ca Products is Kasco Marine's authorized service center for Canada.

Please note that delivery times for RobustAire™ systems are 2 to 3 business weeks.

Description

RobustAire™ systems pump compressed air from a shore-mounted compressor through self-weighted lines to a diffuser on the pond, lake, or tank bottom. The diffuser then continuously releases micro-bubbles that rise to the surface carrying large volumes of water. This induces oxygen transfer as well as beneficial water movement and mixing.

Comparison Table of Aeration Systems

SYSTEMS
	SAS	SAS XL	CanadianAir	RobustAire™
Ideal for:	Small shallow ponds	Small shallow ponds	Medium ponds with level bottom	Medium ponds with bowl-shaped bottom
Pond size	Up to 5,000 ft2	Up to 5,000 ft2	5,000 ft2 to 2 acres	5,000 ft2 to 2 acres
Max. depth	Up to 4 ft depth	Up to 10’ deep	Up to 20 ft depth	Up to 25 ft depth
Diffuser	Choice of 1 to 2 Piccolo circular diffusers	1 or 2 round Piccolo diffusers	Bubble Tubing® 25', 50’ or 100’	1 to 6 Robust-Aire™ diffusers
Compressor type	Linear	Linear	Piston	Piston
Price:	$699 - $1,059	$769 - $1,399	$1,629 - $6,069	$2,219 - $8,365

Technical Specifications

For private ponds, lakes, reservoirs, stormwater retention ponds and other similar bodies of water. RobustAire™ systems allow for continuous aeration of shallow to deep water.

• No electricity in the water
• No equipment floating on the surface, allowing for safe circulation on the water and a more natural look
• No shoreside power required, since the compressor can be installed far from the pond
• Ideal for deep water application
• Low cost for large lake areas
• Minimal maintenance
• 3-year warranty

RA5 (5 diffusers) and RA6 (6 diffusers) systems are also available; please contact us for a quote.

Inclusions

RobustAire™ Diffusers

The diffusers are designed to produce fine air bubbles with minimum pressure. The base is made of durable plastic and comes with a seal that allows you to fill the base with gravel or other ballast substrate. The design keeps the diffusers at an optimal level above the pond bottom. The fittings are durable and bolted to ensure that the ballasted pipe does not come loose during installation or while maintaining the diffusers. A check valve with Viton seals prevents water from entering the pipe when the system is not in operation.

Self-Sinking Airline

Available in easy-to-handle rolls of 100 feet. Rolls are delivered in a box and come with our complete set of connectors, fittings and all necessary stainless steel collars. Additional lengths of ballasted hose ⅜″or ⅝″ are available when required (special order of SureSink™ Weighted Air Line Tubing).

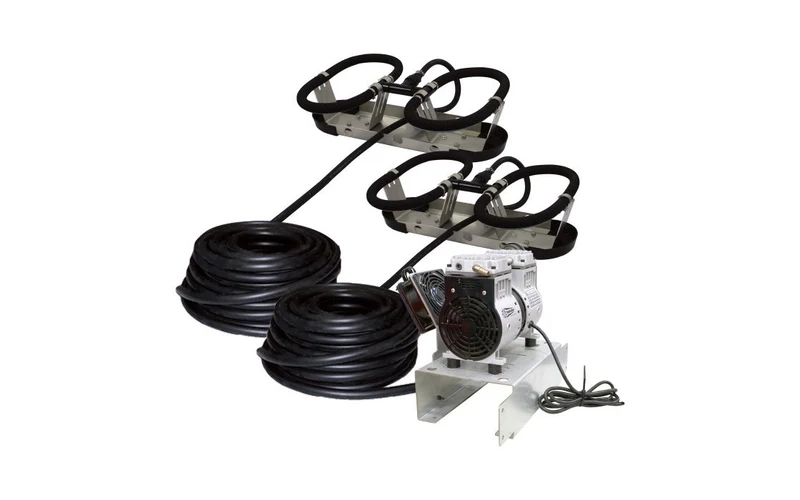

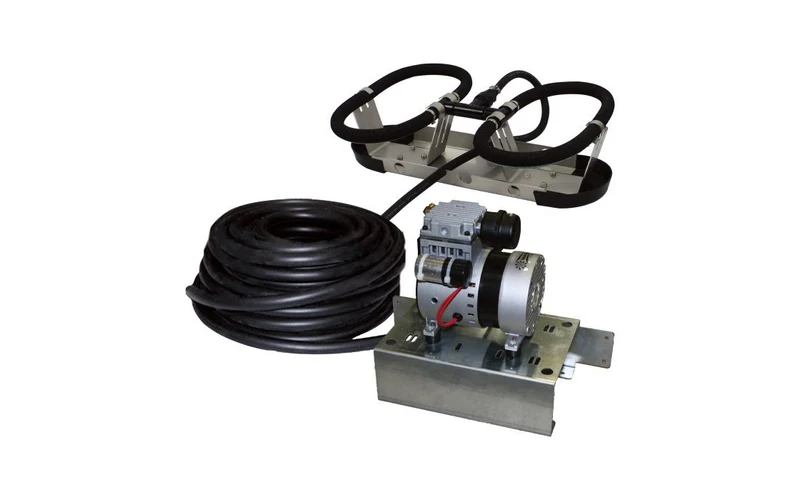

• 1 diffuser (RA1): 100 feet of 3/8" self sinking tubing
• 2 diffusers (RA2): 2x100 feet of 3/8" self sinking tubing

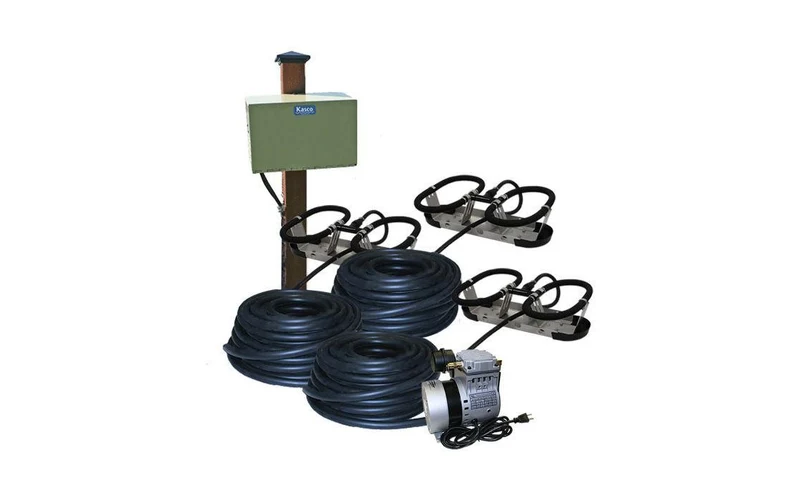

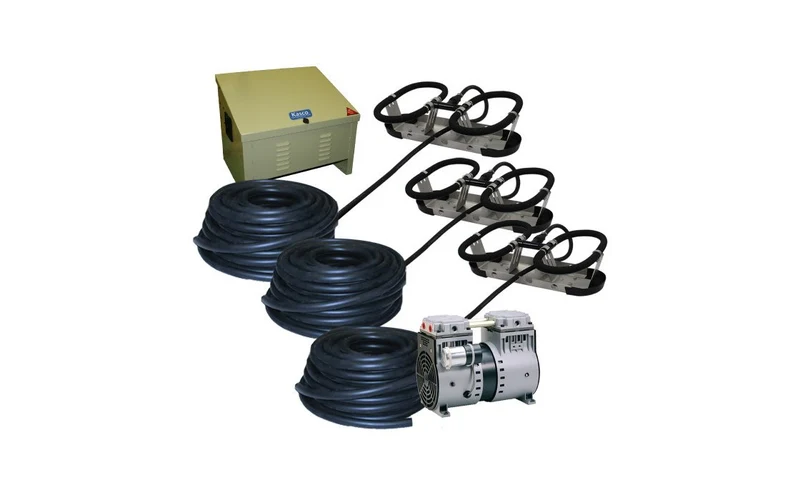

• 3 diffusers (RA3): 3x100 feet of 3/8" self sinking tubing

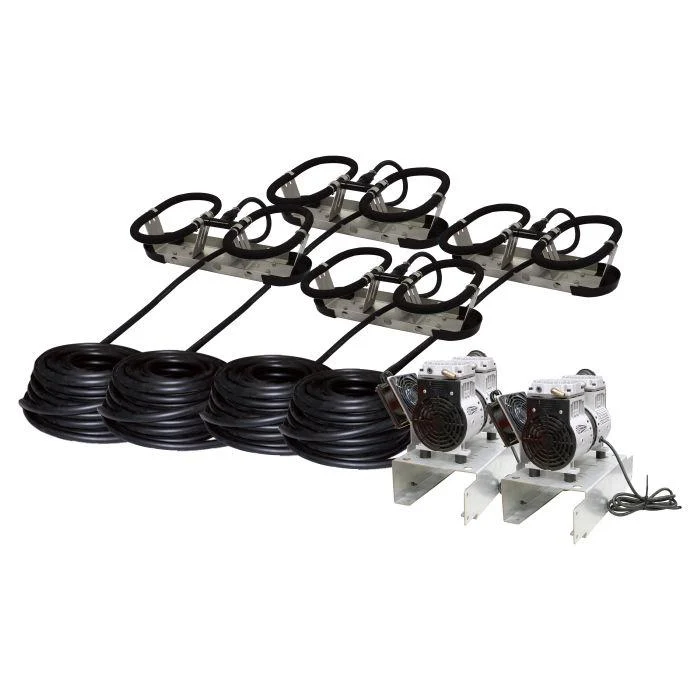

• 4 diffusers(RA4): Tubing not included

RA5 (5 diffusers) and RA6 (6 diffusers) systems are also available; please contact us for a quote.

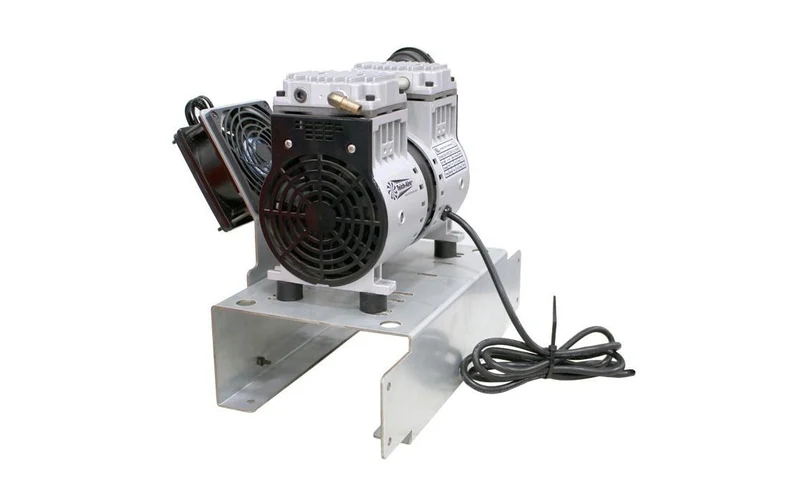

Cabinet & Compressor

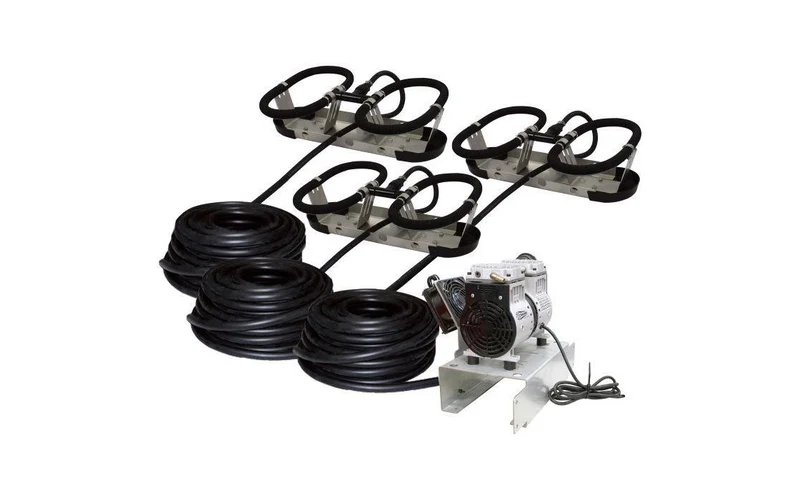

Choice of ground cabinet, post-mounted cabinet or no cabinet (must be protected in a shed). See our page on cabinets to learn more.

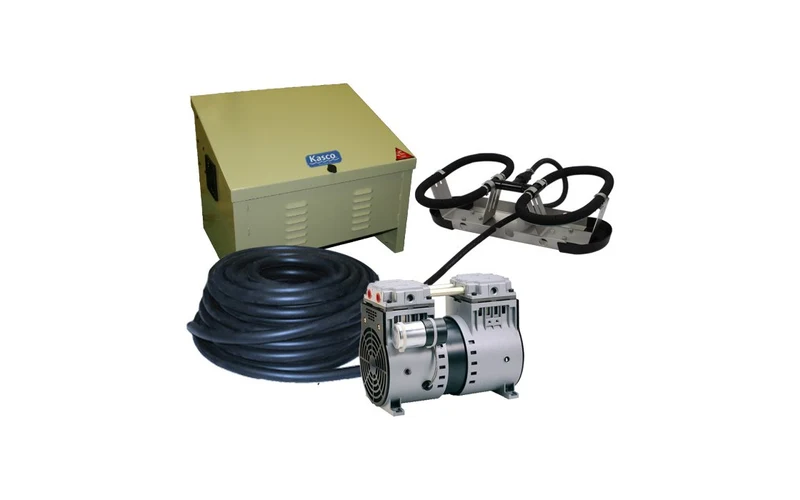

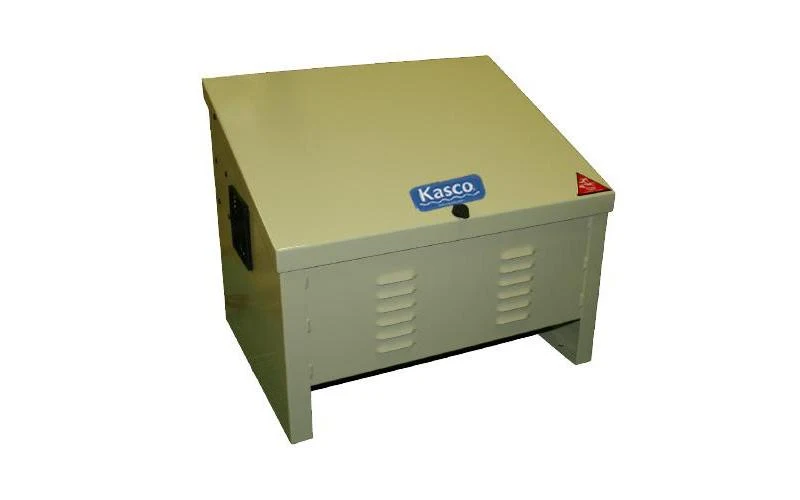

Floor-mounted cabinet:

• Floor cabinet dimensions 61 x 46 x 51cm (24'' x 18''x 20")
• A 120V outlet or a 240V junction box
• A unique cooling fan providing 110 CFM of ventilation
• A compressor is factory-installed in the cabinet, which is equipped with acoustic foam and a key lock

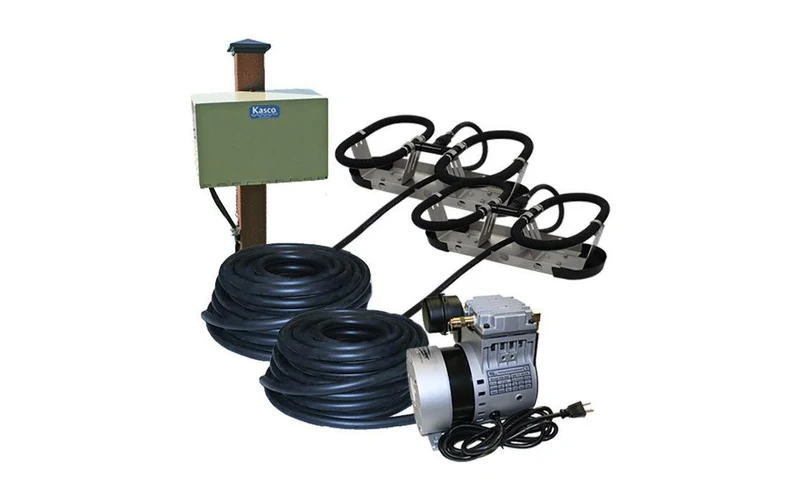

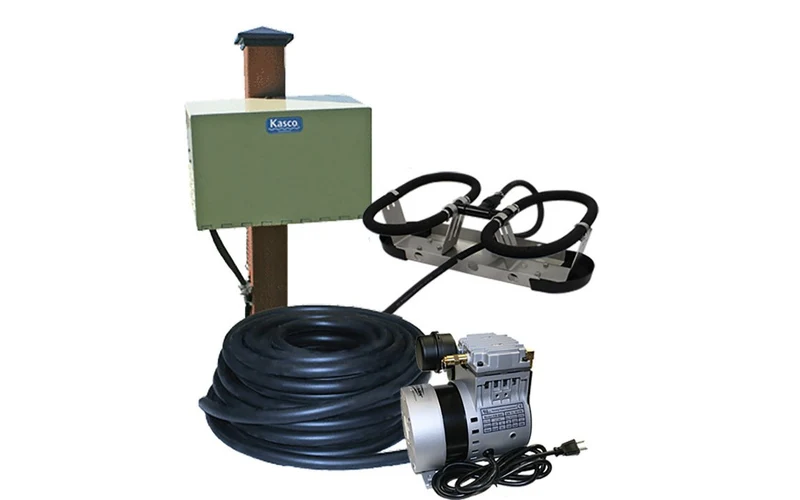

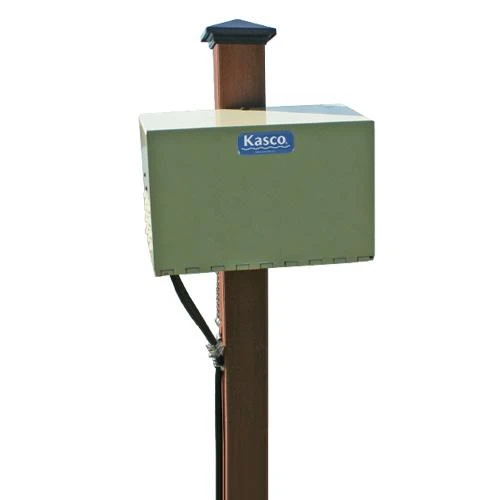

Cabinet for post or wall:

• The post-mounted cabinet (PM) is mounted on an exterior wall or wooden post (not included)
• Dimensions 48 x 30 x 30 cm (19'' x 12'' x 12″)
• A 120V outlet or a 240V junction box
• A unique cooling fan providing 110 CFM of ventilation
• A compressor that is factory-installed in the cabinet, which is equipped with acoustic foam and a key lock

Manufacturer's product sheet (PDF)
